Installing the system battery

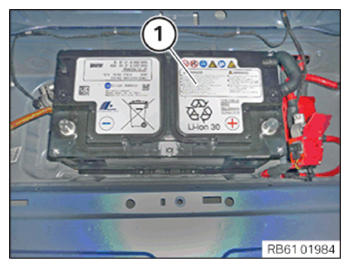

• Position the system battery (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

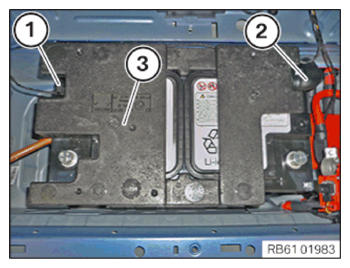

• Position the cover (3).
• Connect connectors (1) and lock.
• Position vent hose (2) and connect it.

  Courtesy of BMW OF NORTH AMERICA, INC.

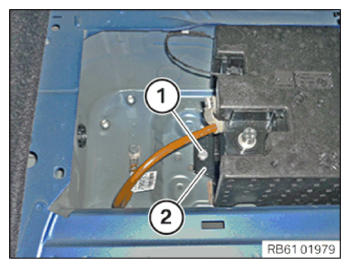

• Position holder (2).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Battery carrier to body
  M8 screw	Tightening Torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

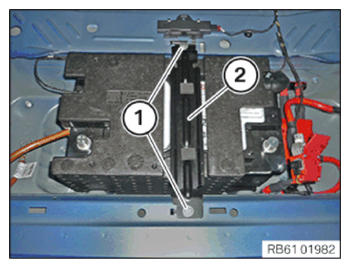

• Position the battery rollover protection bracket (2).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Battery rollover protection bracket to luggage compartment floor
  screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

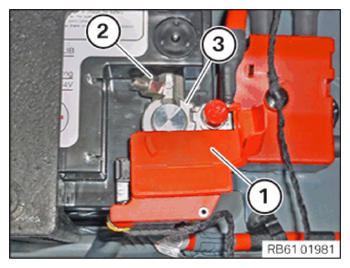

• Position positive battery terminal (3) on the positive battery terminal.
• Tighten nut (2) on the positive battery terminal.
• Close positive battery terminal (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

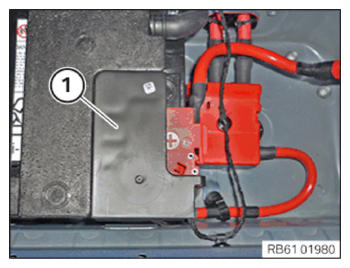

• Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CHECKING THE VENT HOLES OF THE BATTERY .
• Refer to CONNECTING ALL BATTERY GROUND LEADS  .
• Refer to REGISTERING BATTERY CHANGE .
