Installing the power distribution box for the positive battery cables at the rear
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

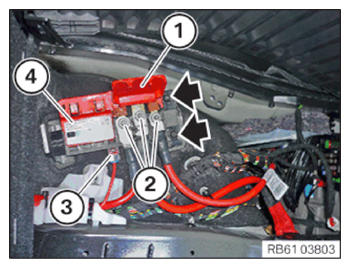

- Position the power distribution box (4) correctly and tighten the nuts (arrow).TIGHTENING TORQUES SPECIFICATION
Power distribution box positive battery cable (side wall) Plastic nut Tightening torque 4 Nm - Connect connectors (3) and lock.
- Position the rear positive battery cables and tighten nuts (2).TIGHTENING TORQUES SPECIFICATION
Positive battery cable Positive pole screw tightening torque 15 Nm - Close the cover (1).
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
