Replacing the battery ground lead
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS = .
Remove battery ground lead
WARNING:
Deactivate the 12-V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no battery charger connected to the jump start terminal in the engine compartment.
- For vehicles with additional electrical systems (48 V electrical system, high-voltage vehicle electrical system), this absolutely must be deactivated before the vehicle battery is disconnected.

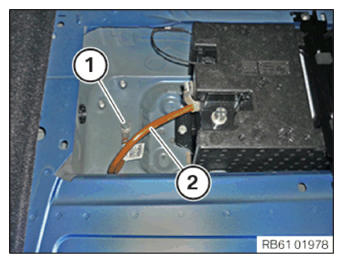

- Loosen nut (1).
- Remove the negative battery cable (2).
- Replace the negative battery cable.
Parts: Battery ground lead
Install battery ground lead
- Position the negative battery cable (2).
- Tighten nut (1).
TIGHTENING TORQUES SPECIFICATION
| Battery ground lead to body | ||
| Flange nut M8 | tightening torque | 15 Nm |
Follow-up work
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
