Removing the top view camera
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE MIRROR GLASS .
- Refer to REMOVING THE PROTECTIVE CAP OF THE VEHICLE EXTERIOR MIRROR .
- Refer to REMOVING THE EXTERIOR MIRROR ADJUSTMENT DRIVE .
- Refer to REMOVING RETAINING RING FROM OUTSIDE REARVIEW MIRROR .

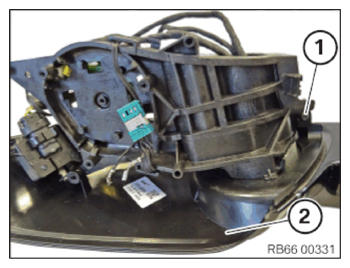

- Remove the bolt (1) on the lower part of the mirror housing (2).

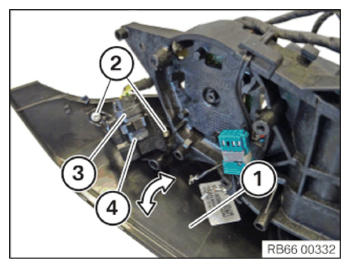

- Carefully pull back the lower part of the mirror housing (1) in the direction of the arrow until the screws (2) are accessible.
- Loosen screws (2).
- Unlock plug connection (3) and disconnect.
- Remove the top view camera (4).
