Removing the radome
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE FRONT RADAR SENSOR LONG RANGE (FRSF) .
- Refer to REMOVING THE FRONT RADAR SENSOR LONG RANGE (FRSF) FROM THE HOLDER .

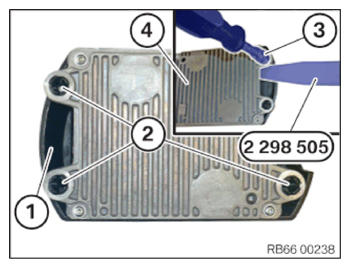

- Release the radome (1) at the detents (2) with the special tool 2 298 505 and a (9 mm) wrench socket set (3) from the ACC sensor (4) and remove it.
NOTE:
Carefully clamp the ACC sensor on the metal frame in a vice to make it easier to remove the radome.
