Installing the rear right ultrasonic sensor

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the rear ultrasonic sensor

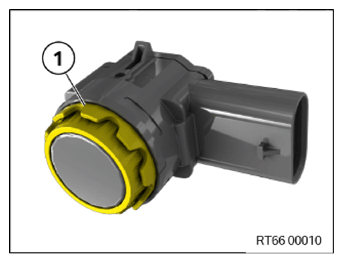

Check decoupling ring (1) for damage.
The decoupling ring (1) must not be missing.

Courtesy of BMW OF NORTH AMERICA, INC.

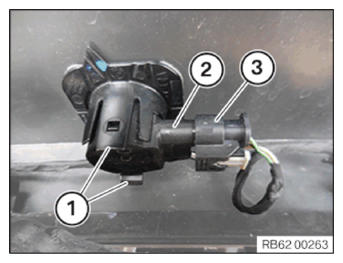

Position the ultrasonic sensor (2) correctly and engage it in the detents (1).
Connect connectors (3) and lock.

G15341382

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR BUMPER COVER .
Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
