Removing the radial shaft seal for the output flange
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVING THE LEFT THRUST FIELD .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to REMOVING FRONT HEAT SHIELD .
- Refer to RELEASING THE TRANSMISSION BEARING SUPPORT .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to PARTIALLY LOOSENING THE PROP SHAFT .
- Remove circlip (1) .

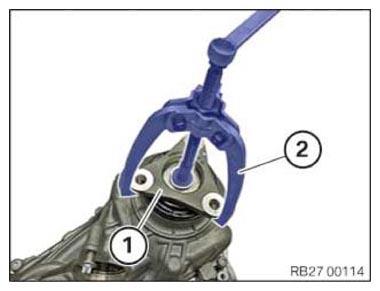

- Detach the output flange (1) with a three-claw extractor tool (2) .

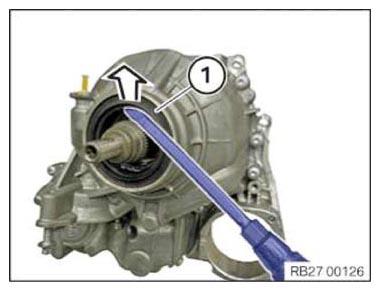

- Lever the radial shaft seal (1) out of the transmission housing with a suitable tool in the arrow direction.
Do not damage the transmission housing.
