Releasing the universal joint from the steering gear
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly. Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
RISK OF DAMAGE
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
- After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
NOTE:
RISK OF DAMAGE
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
Damage to steering column switch cluster (SZL) .
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column .
- After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.

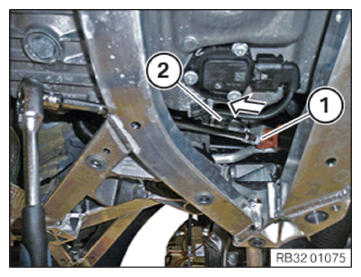

- Release the screw (1) with the reversible ratchet and long extension from below.
- Detach the universal joint (2) from the steering gear in the arrow direction.
