When replacing the right backrest frame: Remount components

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING RIGHT BACKREST SIDE SECTION .
Refer to REMOVING THE RIGHT REAR SEAT BACKREST .
Refer to REMOVING THE BACKREST COVERING WITH THE CUSHION FOR THE REAR SEAT .

Remove the rear panel from the right rear seat backrest

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the head restraint on the rear seat backrest

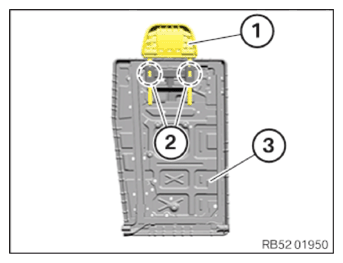

Unclip the head restraint (1) in the marked area (2).
Remove the head restraint (1) upward from the backrest frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the head restraint on the rear seat backrest
Correctly position the head restraint (1) from above on the backrest frame (3).
Clip in the head restraint (1) in the marked area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the rear panel on the rear seat backrest on the right

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the rear panel on the rear seat backrest

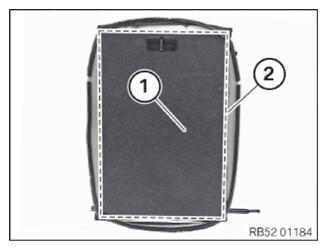

Position the rear panel (1).
Clip the welt of the backrest cover in with the special tool 0 496 569 (00 9 325) along the broken line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION FOR THE REAR SEAT .
Refer to INSTALLING THE REAR SEAT BACKREST .
Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
