Installing the drive for head restraint height adjustment
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The drivetrain for the headrest height adjustment must be replaced as soon as the head restraint is removed.
The drivetrain for the headrest height adjustment must be replaced as soon as the head restraint is removed.
- Replace the drive for the head restraint height adjustment (1).
Parts: Drive for headrest height adjustment

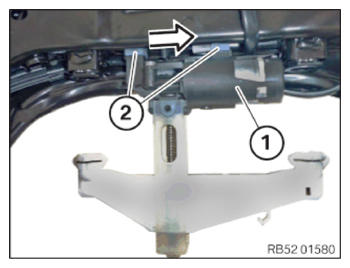

- Install the drive for head restraint height adjustment (1) at the attachment points (2) in the arrow direction.

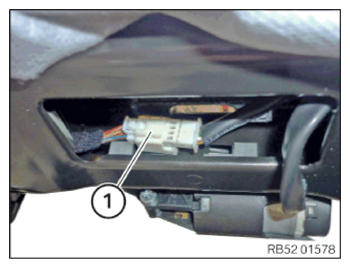

- Connect connectors (1) and lock.
