Removing the seat mechanism (CSL)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
Preliminary work
- Refer to REMOVING THE STRAP FITTING .
- Refer to REMOVING DRIVER'S SEAT .
- Refer to FOR CONTINUING WORK ON THE FRONT SEAT: MOUNT THE FRONT SEAT ON THE UNIVERSAL SEAT MOUNT AND CONNECT WITH THE WIRING HARNESS IF NECESSARY .
- Refer to REMOVING THE SUPPORT FOR FRONT SEAT (CSL) .
- Refer to REMOVING THE SUPPORT FOR FRONT SEAT OF REAR SEAT BACKREST (CSL) .
- Refer to REMOVING THE FRONT LOWER STRAP (CLS) .
- Refer to REMOVING THE CUSHION FOR THE INNER FRONT SEAT (CSL) .
- Refer to REMOVING THE SIDE AIRBAG (CLS) .
- Refer to REMOVING THE CUSHION FOR THE OUTER FRONT SEAT (CSL) .
- Refer to REMOVING THE BADGE IN THE REAR SEAT BACKREST (CSL) .
- Refer to REMOVING THE HEAD RESTRAINT (CSL) .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components. Scratches, surface damage .
Careless handling of tools and sharp-edged components. Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
The operations shown only for one side must be carried out on both sides.

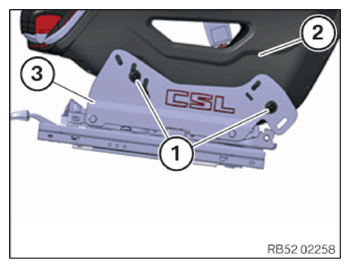

- Loosen screws (1) .
- Carefully feed out and remove the seat pan (2) from the seat mechanism (3) .
- Unlock and disconnect all associated plug connections.
