Installing the front seat trim (CSL)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

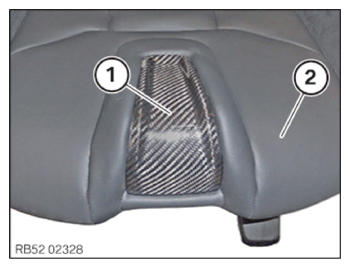

Position seat trim (1) correctly in seat cover (2).

G15339190

Courtesy of BMW OF NORTH AMERICA, INC.

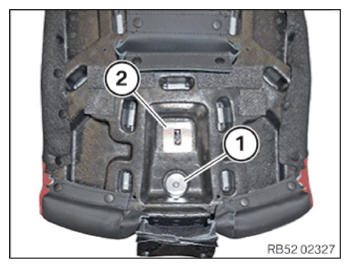

Clip in attachment point (2).
Tighten the screws (1).

G15339191

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SUPPORT FOR THE FRONT SEAT (CSL) .
Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
Refer to INSTALLING DRIVER'S SEAT .
Refer to INSTALLING THE STRAP FITTING .
