After continuing work on the front seat: Disconnecting the front seat from the wiring harness of the vehicle and removing it from the universal seat mount
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Only use the following steps if the front seat has to be adjusted electrically.
Only use the following steps if the front seat has to be adjusted electrically.

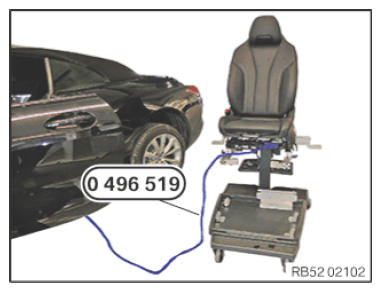

- Disconnect the special tool 0 496 519 (61 4 150) from the wiring harness of the vehicle and from the removed front seat.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

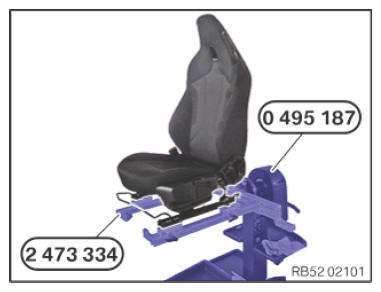

- Remove front seat from the special tool 2 473 334.
