Removing the radial shaft seal for the output flange (GA8HP50Z, GA8HP51Z, GA8HP75Z, GA8HP76Z, GA8HP75HZ)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVING THE LEFT THRUST FIELD .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to REMOVING FRONT HEAT SHIELD .
- Refer to PARTIALLY LOOSENING THE PROP SHAFT .
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
CAUTION:
Materials harmful to health
.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
RISK OF DAMAGE
Damage to the transmission .
Damage to the transmission due to unapproved transmission oil .
Damage to the transmission .
Damage to the transmission due to unapproved transmission oil .
- Use only the approved transmission oil.
- Check the transmission oil level after completing the repair.

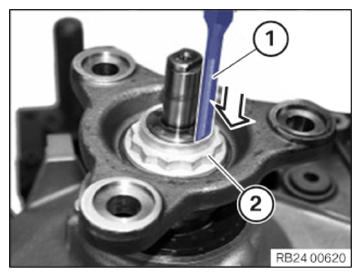

- Pry out nut (2) using a suitable tool (1).
- Brace the output flange (1) with the special tool 0 491 440 (23 0 020) .
- Release nut with special tool 0 494 212 (24 2 380) .
- Detach the output flange (1) from the output shaft.
- Push special tool 0 494 416 (23 3 160) over the output shaft.
- Screw special tool 0 494 416 (23 3 160) in arrow direction into the radial shaft seal as far as necessary until the special tool is securely connected with the radial shaft seal.
- Screw in the screw (1) in arrow direction into special tool 0 494 416 (23 3 160) until the radial shaft seal is pulled out of the transmission housing.
