Installing auxiliary coolant pump for the exhaust turbocharger

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Non-visible damage to the coolant pump .
Forcibly removing, installing or dropping the coolant pump down will damage it .

Remove and install the coolant pump without damaging it and without applying external force.
Avoid impacts/knocks to the coolant pump (e.g. by tools, falling down, hard contact with base).
Replace coolant pump after being dropped or hard impacts/knocks.

NOTE: TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.

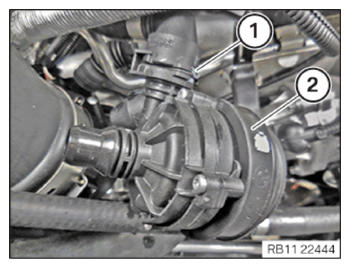

Position the auxiliary coolant pump (2) .
Connect and lock coolant line (1) .
The coolant line (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

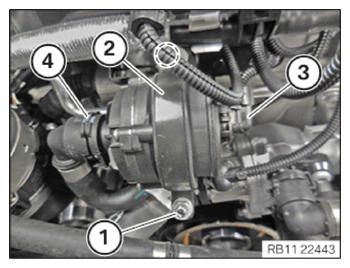

Feed in and install the retainer (2) in the marked area.

Tighten nut (1) .

TIGHTENING TORQUE SPECIFICATIONS

Auxiliary coolant pump holder to cylinder head
M6	Tightening torque	8 Nm

Connect connectors (3) and lock.
The connector (3) must engage audibly.
Connect and lock the coolant line (4) .
The coolant line (4) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
