Installing the air conditioning control panel for the rear
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

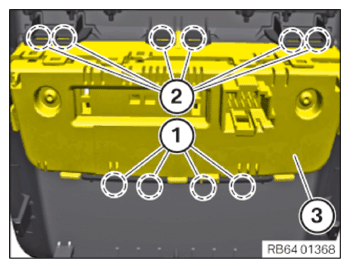

- Set down the air conditioning control panel (3) on the decorative strip and position correctly.
- Click detents (1) and (2) into place.
Follow-up work
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
