Installing front left mixed air flap motor (M23a)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

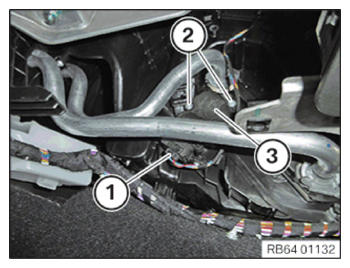

- Position the front left fixed air flap motor (3).
- Tighten screws (2).TIGHTENING TORQUES SPECIFICATION
Heater/air conditioner Screw tightening torque 1.2 Nm - Connect connectors (1) and lock.
Follow-up work
- Refer to VEHICLES WITH AIRBAG MODULE: INSTALL KNEE AIRBAG .
- Refer to INSTALLING LEFT AIR DUCT .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ADDRESSING THE CONTROLLER DRIVE .
