Adjust the timing of the camshaft

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE HOLDER OF THE POSITIVE BATTERY CABLE .
Refer to REMOVING LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 4 TO 6 .
Refer to BLOCKING THE CRANKSHAFT IN THE TDC FIRING POSITION OF CYLINDER 1 .
Refer to REMOVING CHAIN TENSIONER .

Precondition

Crankshaft is disconnected and blocked.

Engine is in the TDC firing position of cylinder 1.

Keep the set of special tools 2 471 127 ready.

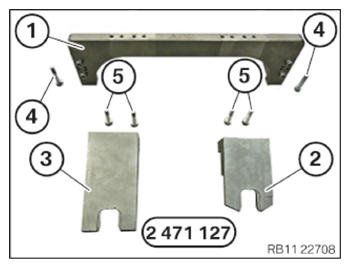

Number	Description
1	Basic carrier
2	0.7° setting gauge to adjust the intake camshaft
3	0.5° setting gauge to adjust the exhaust camshaft
4	Basic carrier screws on cylinder head
5	Screw gauge on basic carrier

Courtesy of BMW OF NORTH AMERICA, INC.

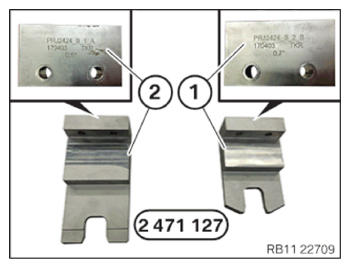

Use the setting gauge of 0.7° (1) from the set of special tools 2 471 127 to adjust the intake camshaft.
Use the setting gauge of 0.5° (2) from the set of special tools 2 471 127 to adjust the exhaust camshaft.

Courtesy of BMW OF NORTH AMERICA, INC.
Have the special tool 0 496 855 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

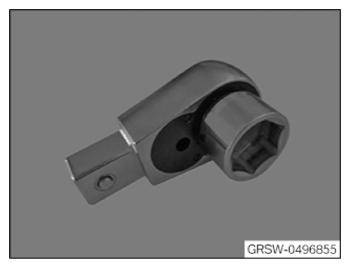

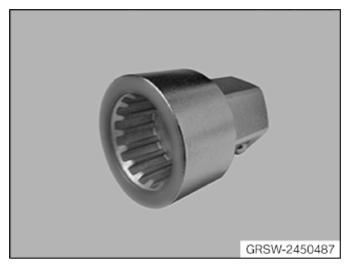

Have the special tool 2 450 487 ready.

Courtesy of BMW OF NORTH AMERICA, INC.

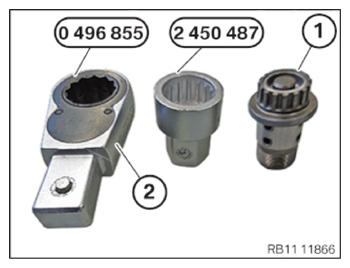

To release the VANOS central valve (1), use the reversible ratchet (2) from special tool 0 496 855 with special tool 2 450 487 .

Courtesy of BMW OF NORTH AMERICA, INC.

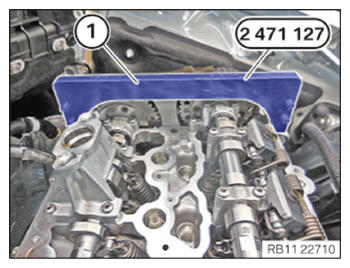

Position the basic carrier (1) from the set of special tools 2 471 127 on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

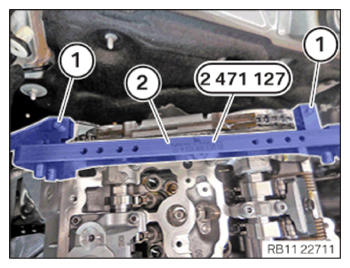

Tighten the screws (1) from the set of special tools 2 471 127 on the basic carrier (2) .

TIGHTENING TORQUE SPECIFICATIONS

Basic carrier to cylinder head
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

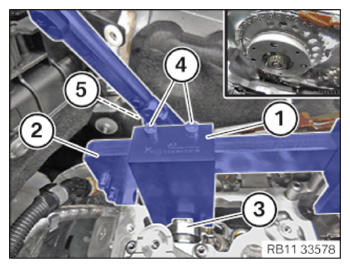

Position the setting gauge 0.7° (1) from the set of special tools 2 471 127 between the basic carrier (2) from the set of special tools 2 471 127 and the intake camshaft (3).
If necessary, crank the engine at the crankshaft using special tool 0 493 380 (11 6 480) .
Tighten the screws (4) from the set of special tools 2 471 127 .

TIGHTENING TORQUE SPECIFICATIONS

Test gauge to basic carrier
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the VANOS central valve (5) of the intake adjuster.

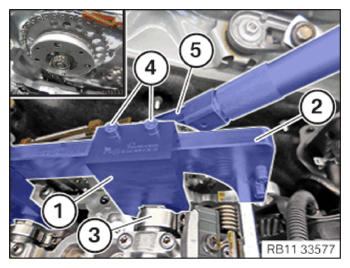

Position the setting gauge 0.5° (1) from the special tool 2 471 127 between the basic carrier (2) from the set of special tools 2 471 127 and the exhaust camshaft (3).
If necessary, crank the engine at the crankshaft using special tool 0 493 380 (11 6 480) .
Tighten the screws (4) from the set of special tools 2 471 127 .

TIGHTENING TORQUE SPECIFICATIONS

Test gauge to basic carrier
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the VANOS central valve (5) of the exhaust camshaft adjuster.

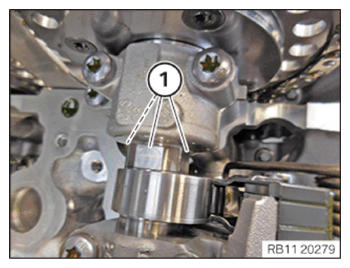

Ensure that the flattened areas (1) on the intake camshaft and exhaust camshaft point upward.

Courtesy of BMW OF NORTH AMERICA, INC.

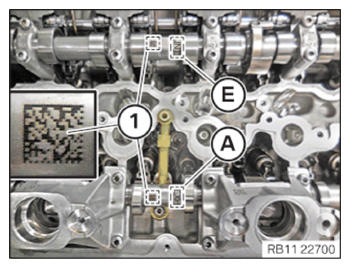

Turn the intake camshaft (E) and exhaust camshaft (A) so that the marks (1) can be read from above.

Courtesy of BMW OF NORTH AMERICA, INC.

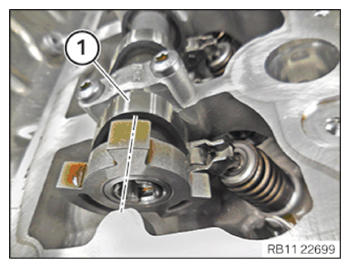

Ensure that the cam (1) on the exhaust camshaft on cylinder 1 points to the inside right at a slight angle.

Courtesy of BMW OF NORTH AMERICA, INC.

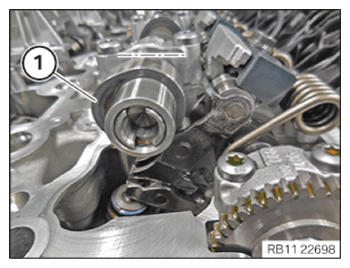

Ensure that the cam (1) on the intake camshaft on cylinder 1 points to the inside left at an angle.

Courtesy of BMW OF NORTH AMERICA, INC.
