Installing the actuator for the right exhaust flap

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the actuator for the exhaust flap

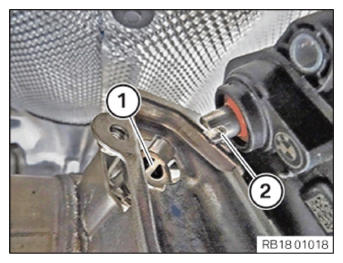

Make sure the installation position of the controller drive (2) for exhaust flap (1) is correct.

Courtesy of BMW OF NORTH AMERICA, INC.

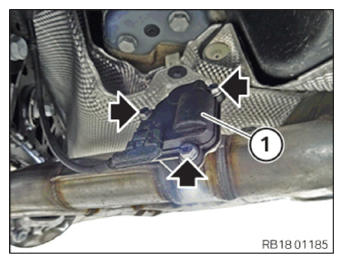

Guide in the actuator for the exhaust flap (1) and install it.
Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Actuator for the exhaust flap to exhaust system
M6x20	Tightening torque	8.0 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

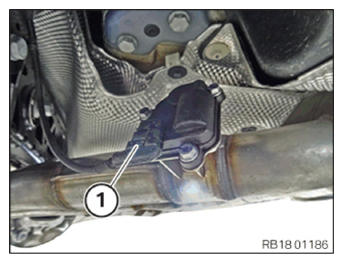

Connect connectors (1) and lock.

The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
