Installing the coolant supply line, part 1, on the auxiliary coolant pump
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

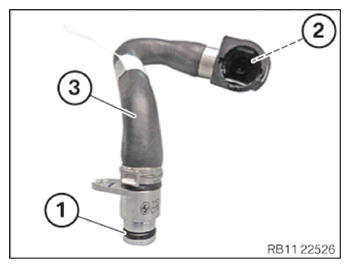

- Replace the sealing ring (1) on the coolant feed line part 1 (3) with the special tool 0 496 714 (00 9 030)
.
Parts: Sealing ring
- Check the sealing ring (2) for damage, replace the coolant feed line part 1 (3) if necessary.

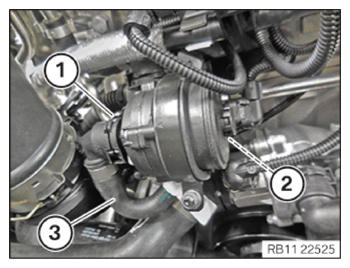

- Feed in and install the coolant feed line part 1 (3).
- Make sure that the lock (1) engages audibly.
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Coolant feed line part 1 on crankcase | ||
|---|---|---|
| M6X16 | tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
