Installing the coolant thermostat

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

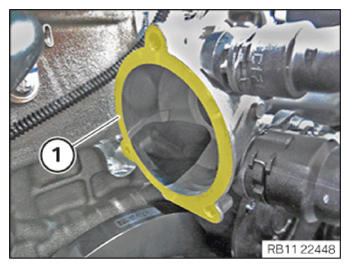

Clean the sealing surface (1) using special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

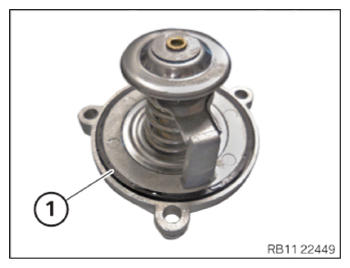

Replace sealing ring (1) .
Parts: Sealing ring
Guide in and install sealing ring (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

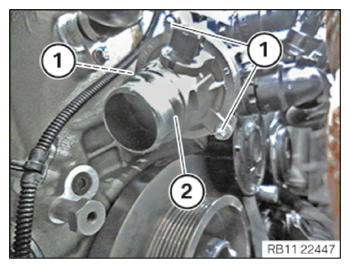

Guide in and position coolant thermostat (2) .

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Coolant thermostat to coolant pump
M6X25	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

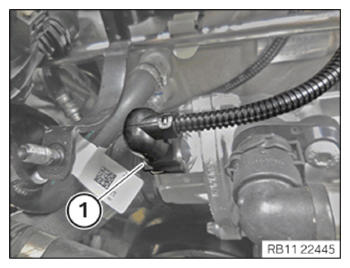

Connect and lock coolant line (1) .
The coolant line (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

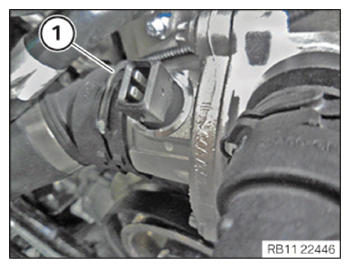

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to FASTENING THE AUXILIARY COOLANT PUMP FOR THE EXHAUST TURBOCHARGER .
Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
Refer to INSTALLING THE CHARGE AIR LINE .
Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
