Removing transmission oil cooler
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
When the engine is stopped after the completion of trip, it may be necessary to run the electric fan. In rare cases, operation of the electric fan can last up to 11 min. This protects the components. In this case, replacing the electric fan will not remedy the problem!
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .
- Refer to REMOVING THE RIGHT HAND FRONT BOTTOM SIDE COVER .
- Refer to PARTIALLY RELEASING THE ENGINE OIL COOLER .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING THE FRONT-END STRUT .
- Refer to REMOVING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to REMOVING SEAL FOR FRONT HOOD .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to DRAINING THE COOLANT FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING THE COOLING MODULE .

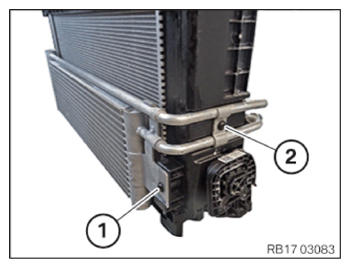

- Loosen screw (1) .
- Loosen screw (2) .

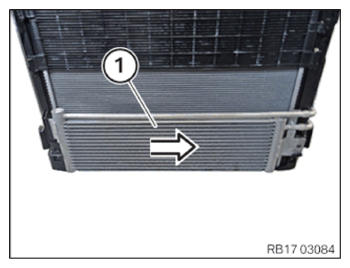

- Guide out the transmission oil cooler (1) in the arrow direction and remove it.
