Installing the right front external radiator

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.

Check the rubber mount (1) for correct fit on the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check the rubber mount (1) for correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.

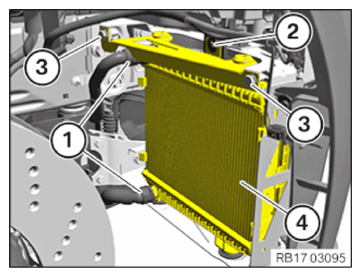

Insert the right external radiator (4) into the lower rubber mounts in the arrow direction and install it.
Replace screws (3).
Parts: Screws
Tighten the screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Holder for upper external radiator
Screw Replace screw.	Tightening torque	19 Nm

Tighten down screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Air duct for the external radiator on the holder
Screw	tightening torque	2.5 Nm

Connect and lock coolant lines (1).

The coolant lines (1) must lock audibly.

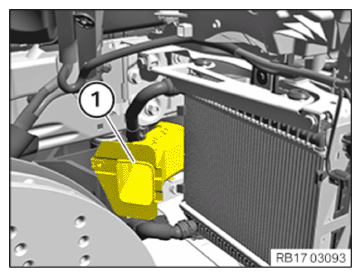

Guide in and install air duct (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
Refer to INSTALLING THE FRONT RIGHT WHEEL .
Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
