Installing the radiator of the high-temperature coolant circuit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

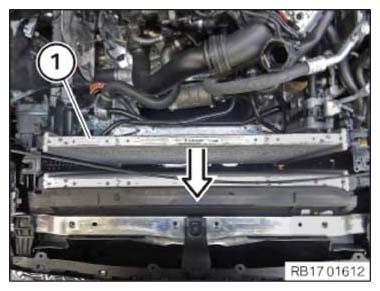

- Guide in the radiator of the high-temperature coolant circuit (1) carefully in the arrow direction.

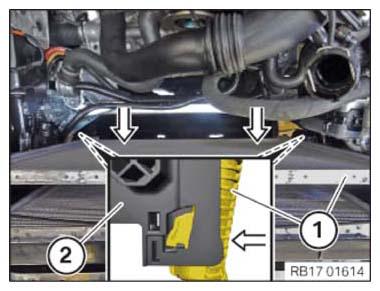

- Guide the radiator of the high-temperature coolant circuit (1) into the holder (2) in the lower area in the arrow direction and install it.

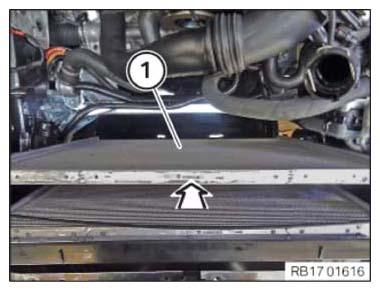

- Bring the radiator of the high-temperature coolant circuit (1) into contact in the arrow direction.

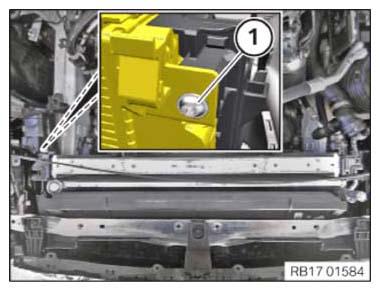

- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Radiator on holder | ||
| Screw D6x20 | tightening torque | 6 Nm |

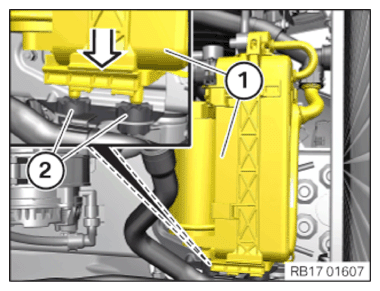

- Guide the air conditioning condenser (1) into the rubber mount (2) in the arrow direction and install it.
- Guide in and install the cover (2) on the top.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cooling module cover on holder | ||
| D6X20 | Tightening torque | 7 Nm |
Follow-up work
- Refer to INSTALLING FAN COWL .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
