Installing the boost pressure sensor on the intake plenum
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

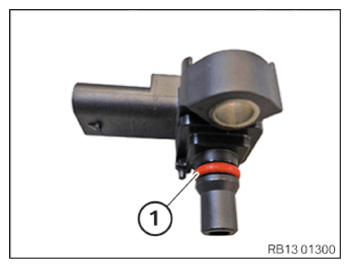

- Check the sealing ring (1) for damage, replace it if necessary.
- Apply a thin coat of lubricant to the sealing ring (1) of the boost pressure sensor.

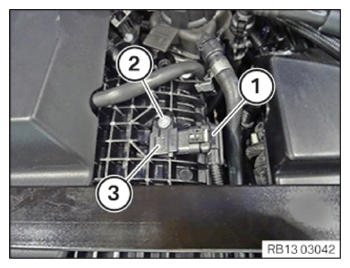

- Insert the charging pressure sensor (3) and install it.
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Boost pressure sensor to intake plenum | ||
|---|---|---|
| TS6X20 | Tightening torque | 5 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
