Install charge air temperature sensor

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

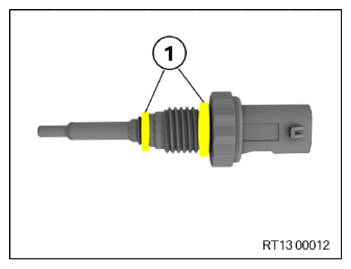

Check the sealing rings (1) on the charge-air temperature sensor for damage, replace if applicable.

Courtesy of BMW OF NORTH AMERICA, INC.

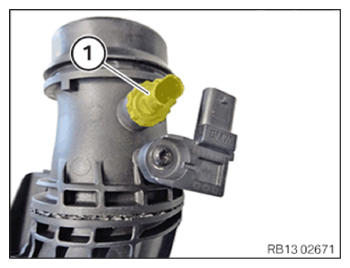

Insert and install the charge-air temperature sensor (1) .
Tighten the charge-air temperature sensor (1) using the special tool 0 496 142 (11 8 850) .

TIGHTENING TORQUE SPECIFICATIONS

Charge air temperature sensor on charge air line
Sensor	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CHARGE AIR LINE .
Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
Refer to INSTALLING FAN COWL .
Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
