Install the rail pressure sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

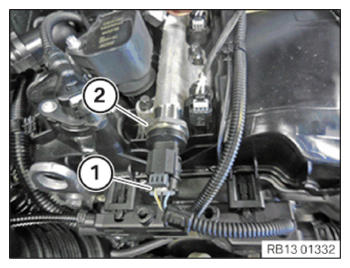

- Insert and install the rail pressure sensor (2).
- Tighten the rail pressure sensor (2).
TIGHTENING TORQUE SPECIFICATIONS
| Rail pressure sensor to rail | ||
|---|---|---|
| Sensor | Tightening torque | 32.5 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Check fuel system for leak tightness.
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
