Remove fuel low-pressure sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
Preliminary work
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING THE ACOUSTIC COVER .
WARNING:
Working on fuel system
.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

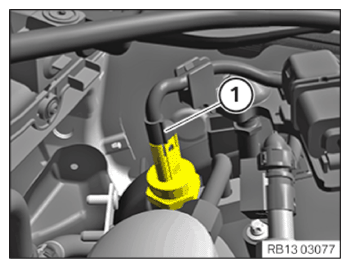

- Unlock plug connection (1)
and disconnect.

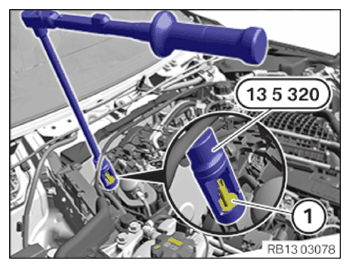

- Release fuel low-pressure sensor (1) using special tool 0 491 318 (13 5 320) .
- Catch and dispose of escaping fuel.

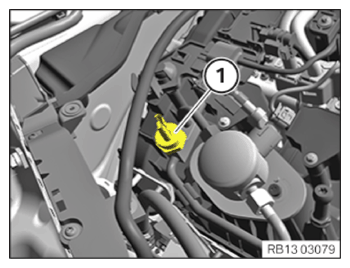

- Remove fuel low-pressure sensor (1) .
