Installing fuel low-pressure sensor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

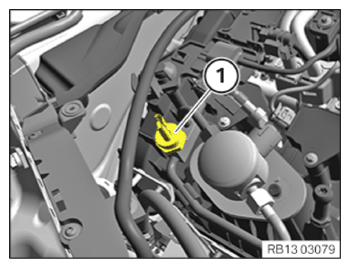

- Feed in the fuel low-pressure sensor (1) and install it.

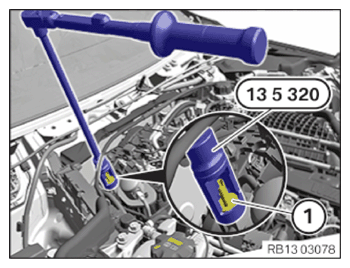

- Tighten the fuel low-pressure sensor (1) with the special tool 0 491 318 (13 5 320) .
TIGHTENING TORQUE SPECIFICATIONS
| Fuel low-pressure sensor on fuel supply line | ||
|---|---|---|
| Fuel low-pressure sensor | Tightening torque | 30 Nm |

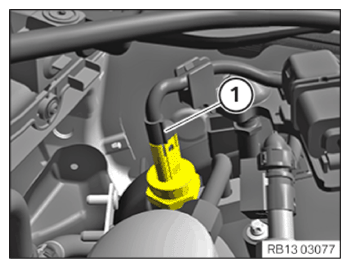

- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Check fuel system for leak tightness.
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
