Preparing for the installation of the rear window
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Protect the vehicle interior against contamination.

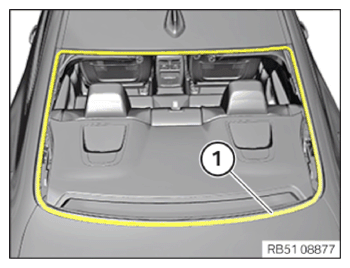

- Clean the body aperture (1) using the adhesive bead.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean the painted sheet metal surfaces without the adhesive bead.CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 - After cleaning, allow to air out.TECHNICAL DATA SPECIFICATION
Air drying time after cleaning Window glass or painted panel without residual adhesive bead 5 min Body with adhesive bead 15 min - Remove the adhesive bead (1) on the body aperture shortly before bonding using the standard tool (2).
Standard tool:
Pinchweld scraper set
Pinchweld scraper set
81 62 0 410 436
NOTE: TECHNICAL INFORMATION

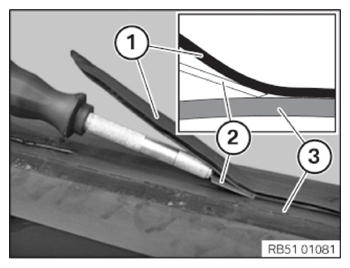

Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents. - Prepare pinchweld scraper (2) as pictured.
- Trim the adhesive bead (1) on the body (3).TECHNICAL DATA SPECIFICATION
Residual height of the adhesive bead Residual height of the adhesive bead max. 1 mm - Be sure to touch up paintwork damage.
- Sand large-scale damage down to the bare metal and coat.TECHNICAL DATA SPECIFICATION
HS-AM multi-base filler VOC Layer thickness 30 μm... 40 μm Hardening time with infrared 10 min Hardening time without infrared 60°C 30 min Hardening time without infrared 20°C 1 Tag
