Installing gutter strip on the windshield

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

Replace gutter strip on the windshield (1). Paint if necessary.
Parts: Gutter strip

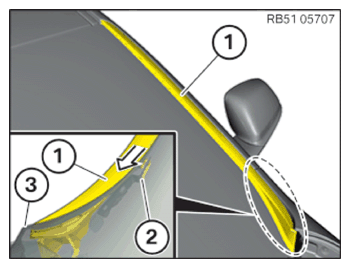

Feed in the gutter strip on the windshield (1) carefully at the side panel (3) and insert it into the guide (2) in the arrow direction at the same time.

Courtesy of BMW OF NORTH AMERICA, INC.

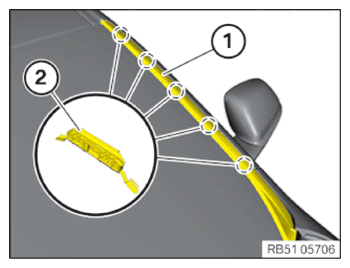

Clip the gutter strip on the windshield (1) into the clamps (2), starting at the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.
