Installing the electrical spindle drive for the right tailgate
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

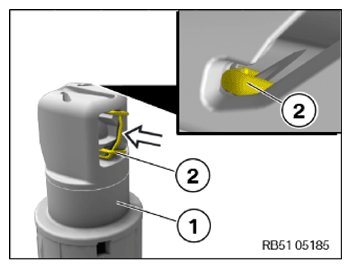

- Before installing the electrical spindle drive for the right trunk lid (1), make sure that the retaining spring (2) is in its initial respective position.

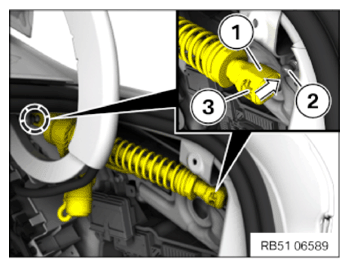

- Press the rear ball socket (1) on the body in the arrow direction onto the ball hubs (2) until the retaining spring (3) engages correctly and audibly.
- Press the front ball socket (1) on the tailgate hinge onto the ball hubs (2) until the retaining spring (3) engages correctly and audibly.

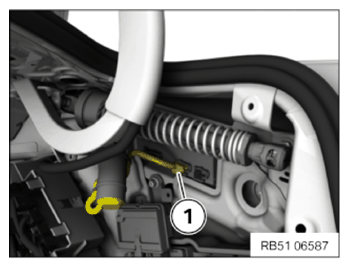

- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
