Removing the gas pressure spring for hood

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Shutting hood or trunk lid.
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .

CAUTION: Shutting hood or trunk lid.
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

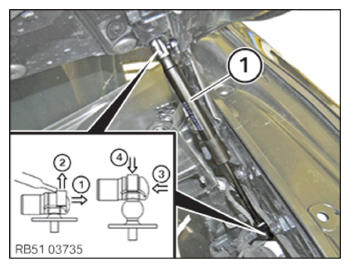

Observe disassembly sequence:
1. Push the clamp in the direction of the groove with the screwdriver.
2. Lift off the ball socket from the ball hub.
3. Push back the clamp.
4. Detach the ball socket from the ball hub.
Remove the gas pressure spring for hood (1).
