Installing front inner weather strip

• Coat the window recess finisher strip (1)  with the emerging lubricant.
  CONSUMABLE SPECIFICATION



  Installation aid  (Circo Light; lubricant)

  250 ml, Bottle

  83192405829

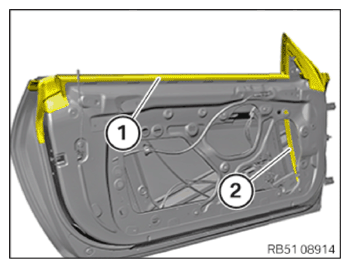

• Position the window recess finisher strip (1)  correctly on the door and install it.
• Install the window recess finisher strip (1)  correctly in the window guide rail (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

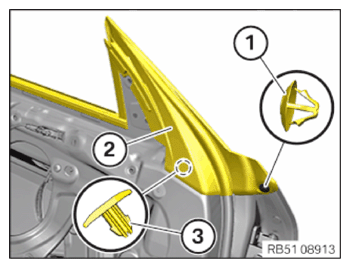

• Insert the window recess finisher strip (2)  correctly.
• Fasten the window recess finisher strip (2)  on the clip (3)  .
• Mount the clip (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

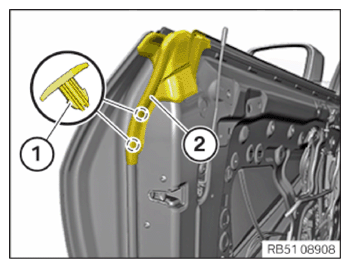

• Insert the window recess finisher strip (2)  correctly.
• Fasten the window recess finisher strip (2)  at the clips (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR WINDOW GLASS .
• Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
• Refer to INSTALLING THE WINDOW CHANNEL STRIP (FRONT) ON THE DOOR .
• Refer to FITTING VEHICLE EXTERIOR MIRROR .
• Refer to INSTALLING THE MIRROR TRIANGLE .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to INSTALLING OUTER WINDOW CHANNEL STRIP .
