Replacing lock cylinder

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING FRONT DOOR TRIM PANEL .
Refer to REMOVING THE MODULE BRACKET FROM THE FRONT DOOR .
Refer to REMOVING OUTER WINDOW CHANNEL STRIP .
Refer to RELEASING THE FRONT DOOR WINDOW GLASS .
Refer to REMOVING FRONT DOOR WINDOW GLASS .
Refer to PARTIALLY REMOVING ELECTRICAL POWER WINDOW OF THE FRONT DOOR .
Refer to REMOVING THE OUTSIDE DOOR HANDLE .
Refer to REMOVING THE OUTSIDE DOOR HANDLE SUPPORT .

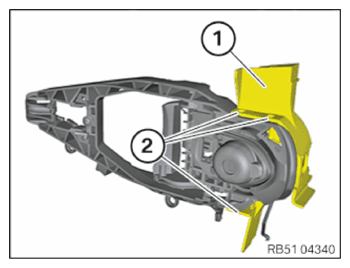

Unclip the cover (1) at the points (2).
Remove cover panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

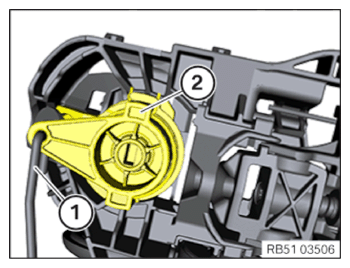

Detach the locking rod (1).
Twist the lock cylinder (2) in clockwise direction and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the lock cylinder.
Parts: lock barrel
Screw in the lock cylinder (2) counterclockwise.
Hook the locking rod (1) into the lock cylinder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cover (1) in the points (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE OUTER DOOR HANDLE SUPPORT .
Refer to INSTALLING THE OUTSIDE DOOR HANDLE .
Refer to INSTALLING SOME OF THE WINDOW REGULATORS WINDOWS IN THE FRONT DOOR .
Refer to INSTALLING FRONT DOOR WINDOW GLASS .
Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
Refer to INSTALLING FRONT DOOR TRIM PANEL .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to ADJUSTING DOOR WINDOW GLASS .
Refer to INSTALLING OUTER WINDOW CHANNEL STRIP .
