Installing rear bumper cover supports
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

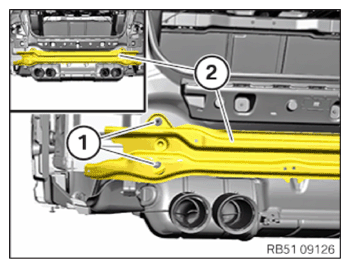

- Install the support for the bumper cover (2).
- Tighten the nuts (1).TIGHTENING TORQUE SPECIFICATIONS

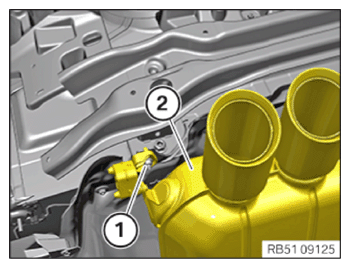

Support on impact plate hexagon nut M12 Tightening torque 108 Nm - Install rear silencer (2).
- Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS
Rear silencer on support M8 hexagon nut Tightening torque 19 Nm
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL LEFT AND RIGHT PARTIALLY .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
