Install the bottom deformation element
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

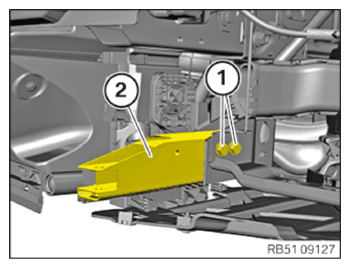

- Feed in the deformation element (2) .
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Deformation element, bottom to adapter, front axle support M 10x60 screw Tightening torque 40 Nm
Follow-up work
- Refer to INSTALLING SUPPORT FOR BUMPER COVER AT FRONT BOTTOM .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE LEFT AND RIGHT AIR DUCT .
- Refer to FASTENING THE LEFT AND RIGHT EXTERNAL RADIATOR .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
