Placing the combustion engine in the installation position
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE SIDE HOOD SEAL .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT TOP RIGHT REAR .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT AT THE TOP REAR .
- Refer to RELEASING THE WIRING HARNESS SECTION ON THE LEFT SHOCK TOWER .
- Refer to RELEASING THE WIRING HARNESS SECTION AT THE RIGHT SHOCK TOWER .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE FRONT-END STRUT .
- Refer to REMOVING THE FILLER CHANNEL OF THE WASHER SYSTEM .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
Prepared engine bridge
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift the component, do not shift it forwards, backwards or in transverse direction.
- Guide in and position special tool 2 459 012 on cylinder head.
- Tighten the screws (1) of special tool 2 459 012 .
TIGHTENING TORQUE SPECIFICATIONS
| Special tool to cylinder head | ||
|---|---|---|
| M8 | Tightening torque | 21.5 Nm |

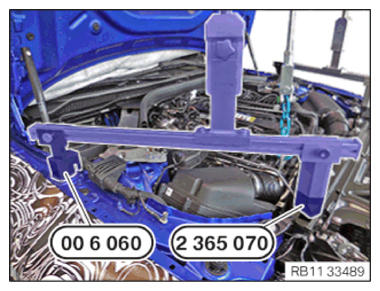

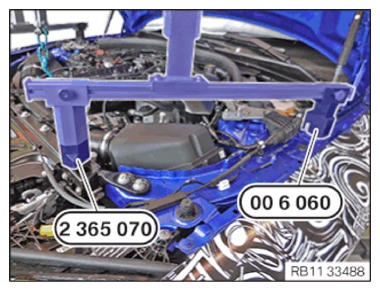

- Carefully
position engine bridge (1) with help from an auxiliary person.

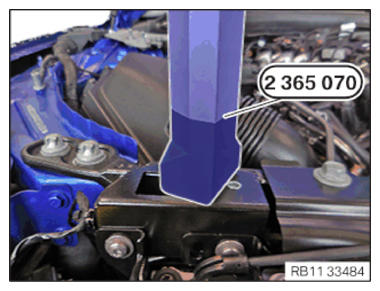

- Ensure that special tool 2 365 070 on the left rests correctly on the lock support.

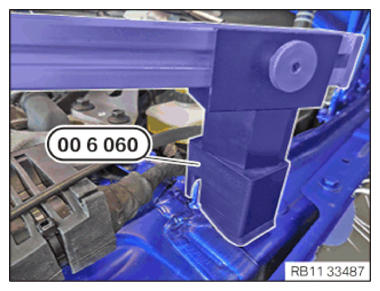

- Ensure that special tool 0 496 431 (00 6 060) on the left rests correctly
on the shock tower.

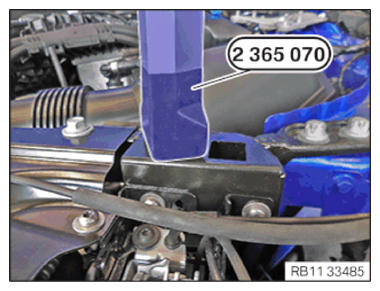

- Ensure that special tool 2 365 070 on the right rests correctly on the lock support.

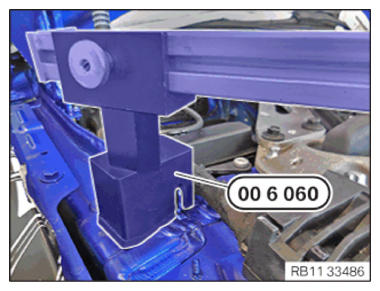

- Ensure that special tool 0 496 431 (00 6 060) on the right rests correctly
on the shock tower.
- Align the engine bridge by moving it on the profile strips of the special tool 0 496 430 (00 6 050) above the engine mounting bracket (1) and screw it down.
- Align hook (1) 0 496 733 (00 6 080) using special tool 2 459 012 .
- Connect hook (1) 0 496 733 (00 6 080)
using special tool 2 459 012
.
- Check if special tool 2 365 070 on the right rests correctly
on the lock support.
- Check if special tool 0 496 431 (00 6 060) on the right rests correctly
on the shock tower.
- Check if special tool 2 365 070 on the left rests correctly
on the lock support.
- Check if special tool 0 496 431 (00 6 060) on the left rests correctly
on the shock tower.
- Keep all the standard tools ready.
Number Description 1 Standard torque wrench 2 Swivelling extension 3 External Torx E14 - Release screw (1) of the left
engine mount from the bottom using a standard tool.
- Release screw (1) of the right
engine mount from the bottom using a standard tool.
- Raise the engine by turning the special tool 2 361 506 (00 6 103) (spindle) by 10 mm.
