Installing transmission cross member
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

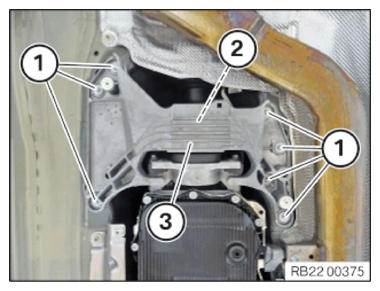

- Install the transmission cross member (3).
- Insert the screw (2) and apply hand-tight.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Transmission cross member to body | ||
| M8 | tightening torque | 19 Nm |
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Transmission cross member to rubber mounts | ||
| M12 | tightening torque | 100 Nm |
- Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050) and 2 219 012 from the transmission.

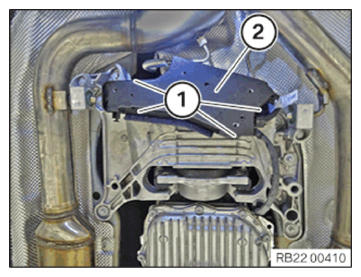

- Install the cover (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Transmission cross member cover | ||
| Nut | Tightening torque | 3 Nm |

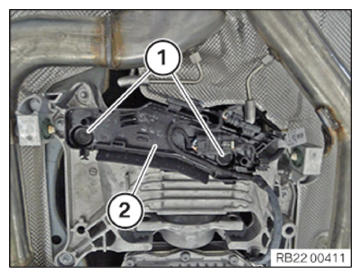

- Install the lid (2).
- Engage the locks (1).
