Installing transmission cross member

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

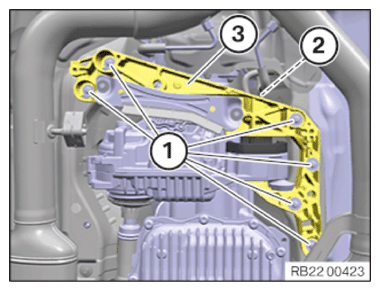

Install the transmission cross member (3).
Insert the screw (2) and apply hand-tight.
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Transmission cross member to body
M8	tightening torque	19 Nm

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

Transmission cross member to rubber mounts
M12	tightening torque	68 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release the luggage strap (1) from the transmission.
Remove the special tools 0 495 498 (23 4 050) and 2 219 012 from the transmission .

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

Replace the screw (1).

Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the screw (1).

Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Replace the screw (1).

Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to holder
Nut M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install the cover (2).
Engage the locks (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) of the cover (2).

TIGHTENING TORQUE SPECIFICATIONS

Cover to transmission cross member
Hexagon screw M8 Replace screw.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
