Removing rubber mount for the transmission bearing (all-wheel drive vehicle)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING TRANSMISSION CROSS-MEMBER .
- Refer to REMOVING PLUG FROM VNT CONTROL UNIT .
- Use special tools 2 445 327 and 0 496 552 (33 3 010) .

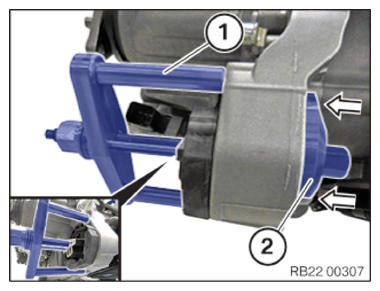

- Position the bridge (1) and centrally align the pressure disc (2) with the retaining lugs pointing towards the top on the rubber mount.
- Install the bridge (1) including pressure disc (2) and press out the rubber mounts in arrow direction.
