Removing the oil pressure switch

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot fluids .
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Preliminary work

Refer to REMOVING THE FRONT SPOILER .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to REMOVING THRUST FIELD .

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

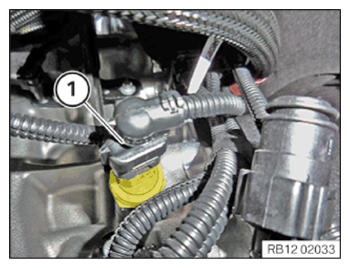

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

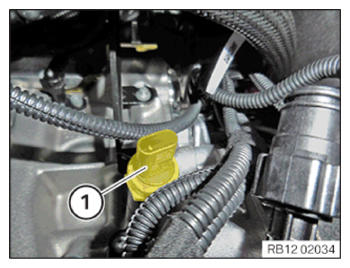

Release and dismantle oil pressure switch (1) with the special tool 0 496 106 (11 8 720) .
Catch and dispose of emerging motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.
