Removing the cylinder head from the assembly jig
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

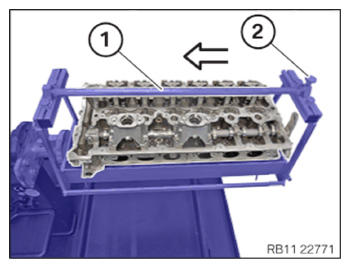

- Loosen screw (2) .
- Feed out the rod (1)
in the arrow direction
and set it aside.

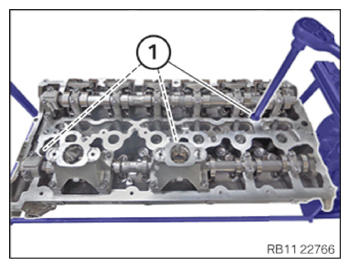

- Release the screws (1) from the special tool 0 494 150 (11 9 440)
.

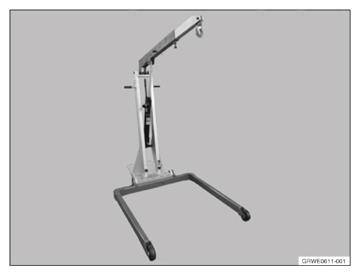

- Stage the special tool (workshop crane) 2 220 718
.

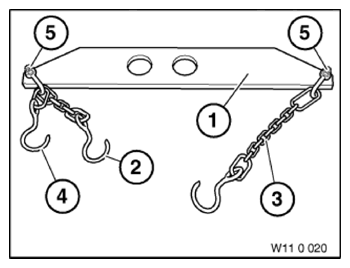

- Prepare the special tool 0 490 567 (11 0 020)
.
- Insert and position special tool 0 490 567 (11 0 020) on the cylinder head (1) .

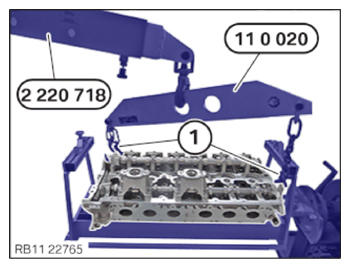

- Position the workshop crane 2 220 718
and connect it to special tool 0 490 567 (11 0 020)
.

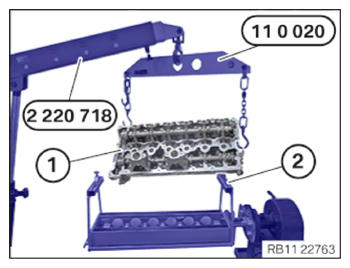

- Detach the cylinder head (1) with the workshop crane 2 220 718 and special tool 0 490 567 (11 0 020) from the device (2), guide it out and remove .
