Remove valve stem seals
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

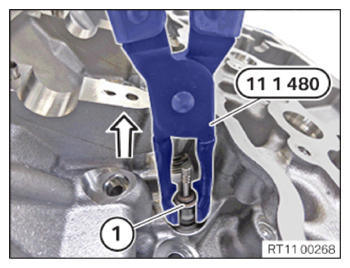

- Remove the valve stem seal (1) in the arrow direction using the special tool 0 490 796 (11 1 480) .
