Mounting the cylinder head on the assembly jig
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

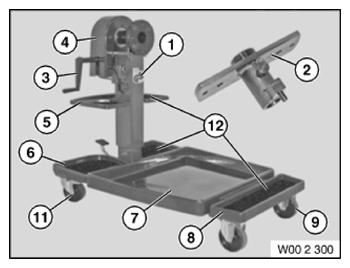

- Get the set of special tools 0 495 187 (00 2 300)
ready.
Number Description 1 Assembly jig 2 Flange 3 Crank 4 cover panel 5 shelf 6 Rear shaped part 7 Collection pan 8 Front shaped part 9 Front wheel 10 Rear wheel with stop 11 Mat - Get the set of special tools 0 494 362 (11 9 000)
ready.

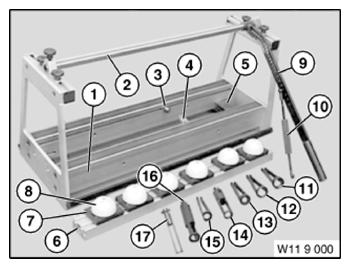

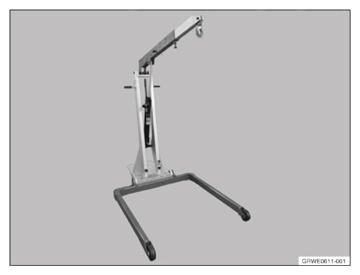

Number Description 1 Stand 2 Rod 3 Adapter 4 Lug 5 Quick fastener 6 Aluminum frame insert 7 Shaped part 8 Plastic shaped part 9 lever 10 Hook 11 Valve spring cage 12 Valve spring cage 13 Valve spring cage 14 Valve spring cage 15 Valve spring cage 16 Valve spring cage 17 Valve spring cage - Stage the special tool (workshop crane) 2 220 718
.

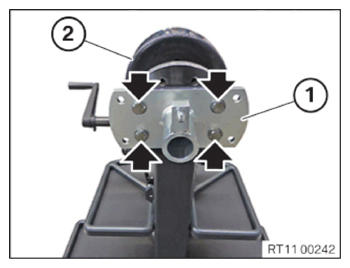

- Position flange (1) on the assembly jig (2) .
- Tighten the screws (arrows).

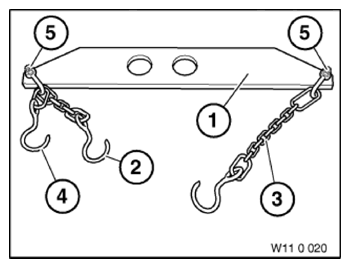

- Prepare the special tool 0 490 567 (11 0 020)
.

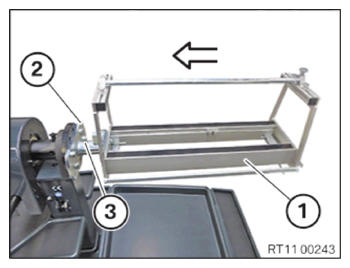

- Slide the device (1) onto the flange (2) in the direction of the arrow and install it.
- Make sure that the lock (3)
engages audibly.

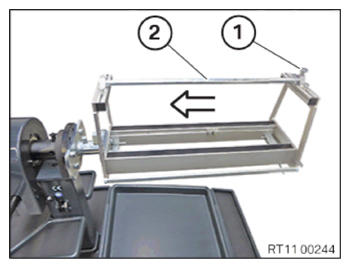

- Loosen screw (1) .
- Feed out rod (2)
in arrow direction and set aside.

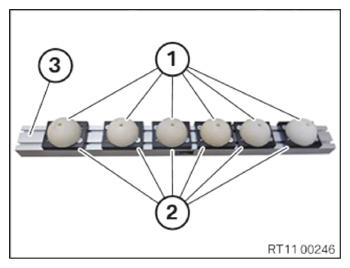

- Prepare plastic shaped parts (1)
with the shaped parts (2)
and aluminum frame insert (3)
.

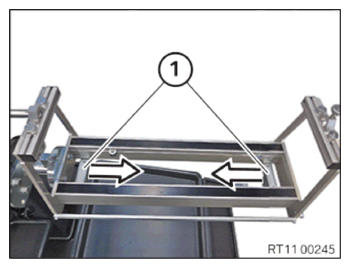

- Slide quick fastener (1)
in arrow direction to the stop.

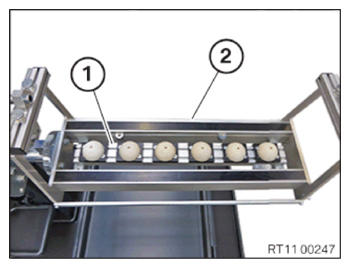

- Position completed aluminum frame insert (1) centered
on the device (2)
.

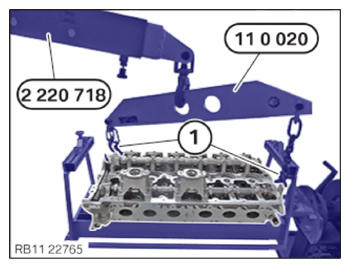

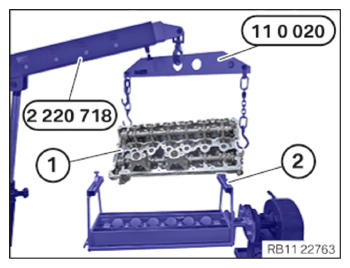

- Position the cylinder head (1)
with the workshop crane 2 220 718 and special tool 0 490 567 (11 0 020)
on the device (2)
.

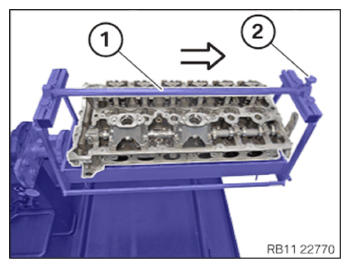

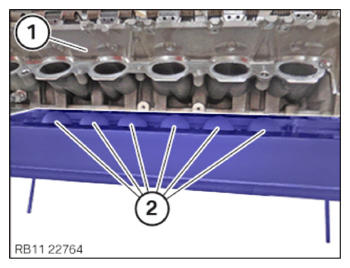

- Position cylinder head (1) correctly
on the completed aluminum strip (2)
.
- Lower the workshop crane 2 220 718 .
- Guide out special tool 0 490 567 (11 0 020) on the cylinder head (1) and remove.
- Remove the workshop crane 2 220 718
and set aside.

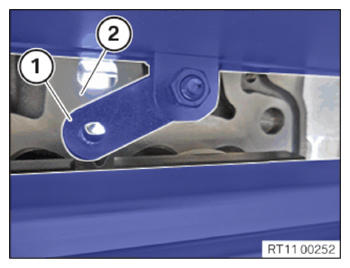

- Guide in and install rod (1) in the direction of arrow .
- Hand-tighten the bolt (2)
.

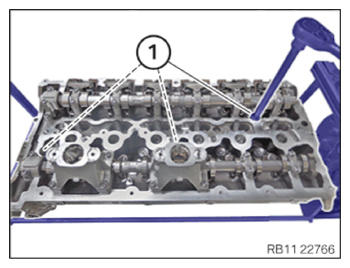

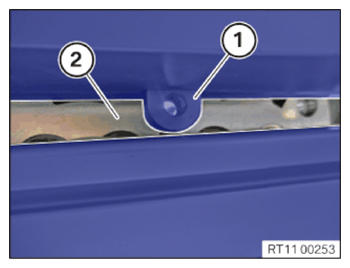

- Position the screw connection (1)
on the cylinder head (2)
.
- Position the screw connection (1)
on the cylinder head (2)
.

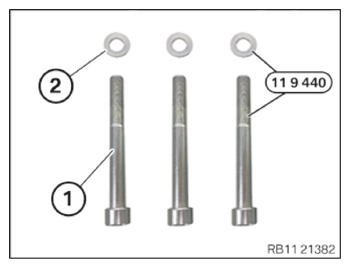

- Prepare the screws (1) M10x90 from the special tool 0 494 150 (11 9 440) .
- Prepare the washers (2) from the special tool 0 494 150 (11 9 440)
.
- Tighten the screws (1) from the special tool 0 494 150 (11 9 440) .
TIGHTENING TORQUE SPECIFICATIONS
| Cylinder head on device | ||
|---|---|---|
| M10X90x1.5 | tightening torque | 30 Nm |

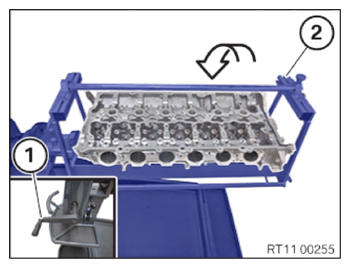

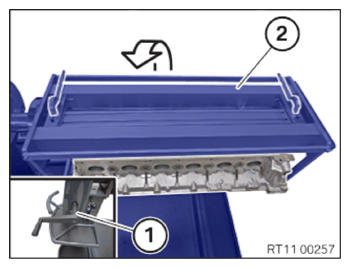

- Turn the device (2)
on the crank (1)
180° in arrow direction.

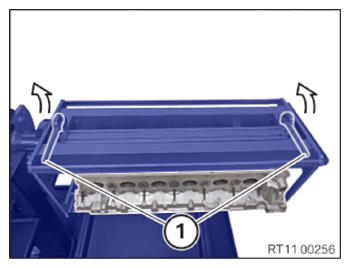

- Lock the quick fasteners (1)
in arrow direction.
- Turn the device (2) on the crank (1) 180° in arrow direction.
