Install exhaust camshaft (cylinder head removed)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

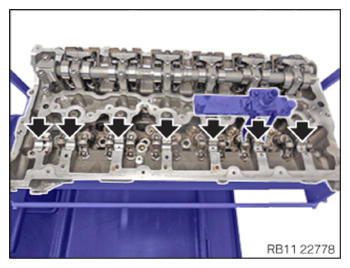

Clean all bearing positions (arrows) and coat with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

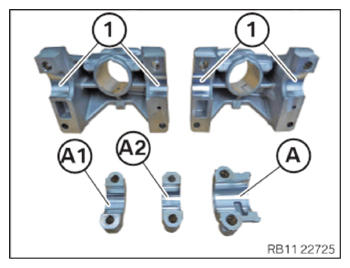

Clean all bearing positions of the exhaust camshaft bearing caps (A1), (A2), and (A) and coat with engine oil.

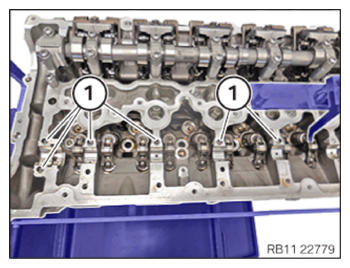

Clean the bearing positions (1) of the high pressure pump bracket and coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

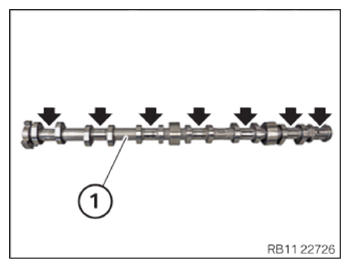

Clean all bearing positions (arrows) of the exhaust camshaft (1).
Coat all bearing positions (arrows) of the exhaust camshaft (1) with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

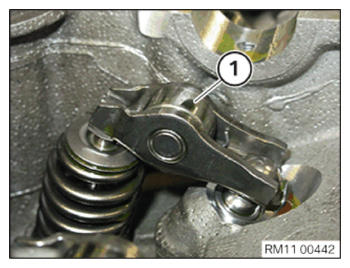

Check all roller cam follower (1) of the exhaust side for correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.
Check the fitting sleeves (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

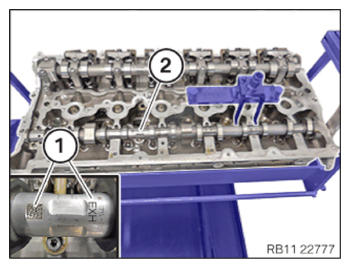

Insert the exhaust camshaft (2) into the cylinder head in such a way that the mark (1) points up.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Engine damage caused by incorrectly installed bearing shells and bearing brackets .
If the bearing shells and bearing brackets are installed incorrectly, then engine damage can occur .

Always install all bearing shells and bearing brackets in the same position from which they were removed.

Courtesy of BMW OF NORTH AMERICA, INC.

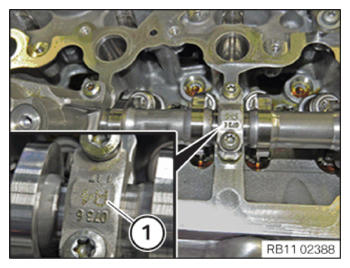

Replace all exhaust camshaft bearing cap so that the labeling (1) from the intake side are readable.

Always install all bearing shells and bearing brackets in the same position from which they were removed.

Courtesy of BMW OF NORTH AMERICA, INC.

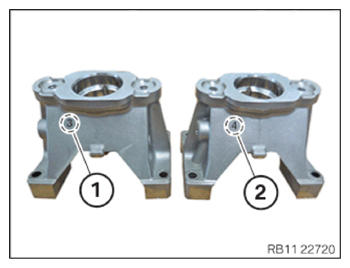

When installing the high pressure pump bracket (1) and (2), ensure the high pressure pump bracket (1) and (2) are numbered in the marked area.

NOTE: TECHNICAL INFORMATION
The camshaft bearing caps must not be mixed up. The camshaft bearing caps must be installed in the installation position from which they were removed.

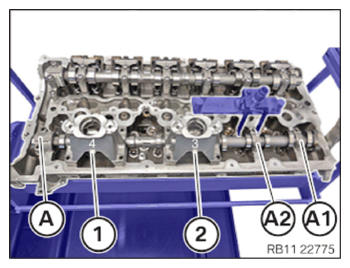

Feed in all exhaust camshaft bearing caps (A1) and (A2) and the exhaust camshaft bearing cap (A) and position.
Feed in and position the high pressure pump bracket (1) for the cylinder 4 .

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and position the high pressure pump bracket (2) for the cylinder 3 .

NOTE: TECHNICAL INFORMATION
The camshaft is under tension due to the valve springs. Tighten or loosen each screw on the camshaft bearing caps in the prescribed sequence only by half a turn. Repeat procedure.

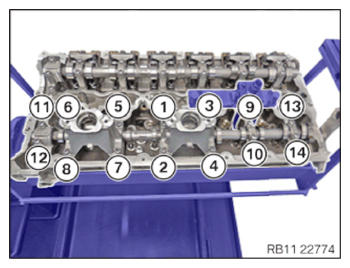

Press the exhaust camshaft bearing cap down and hand-tighten the screws incrementally in sequence (1) to (14).
Abut all screws in the sequence from (1) to (14) in half turns .

Fig 1: Exhaust Camshaft Bearing Caps Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Observe the joining torque .
Tighten all screws in a sequence from (1) to (14).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust camshaft to cylinder head
M6 Tensile strength of screw 8.8	Tightening torque	8.6 Nm
M6 Tensile strength of screw 10.9	Tightening torque	11.8 Nm

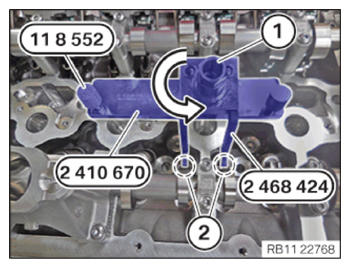

Turn the special tool 2 410 670 using the spindle nut (1) in the arrow direction and release the tension.
Release and remove the special tool 0 495 741 (11 8 552) .
Feed out special tools 2 410 670 with special tool 2 468 424 from the roller cam follower and (2) remove.

Courtesy of BMW OF NORTH AMERICA, INC.

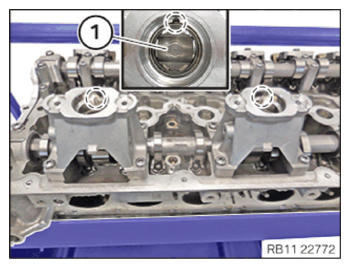

Feed in and install the roller tappet (1) in the marked area in the two high pressure pump brackets.

Courtesy of BMW OF NORTH AMERICA, INC.
