Install all valves

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

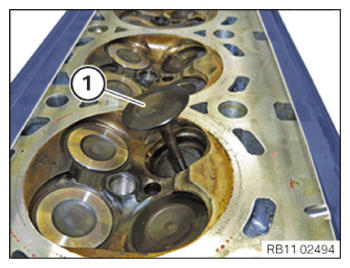

Slide the valve (1) carefully in the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

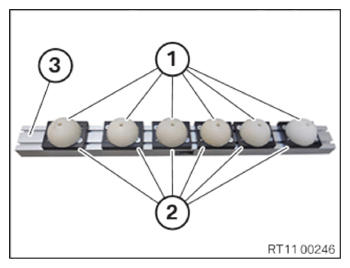

Prepare plastic shaped parts (1) with the shaped parts (2) and aluminum frame insert (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

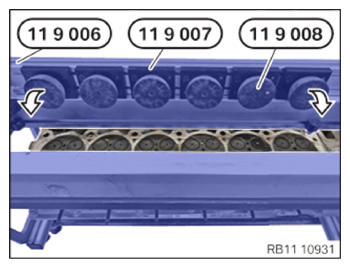

Position special tools 0 494 371 (11 9 006), 0 494 372 (11 9 007) and 0 494 373 (11 9 008) in the center on the cylinder head in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
Turn round special tool 0 494 371 (11 9 006) and insert as shown.
Lock special tool 0 494 370 (11 9 005) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

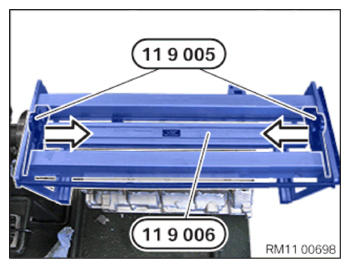

Shift and lock special tool 0 494 370 (11 9 005) in the direction of the arrow over the edges of special tool 0 494 371 (11 9 006) .

Courtesy of BMW OF NORTH AMERICA, INC.

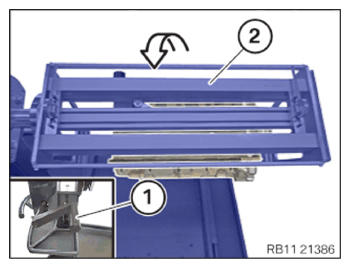

Turn the device (2) on the crank (1) 180° in arrow direction .
