Install all valve springs
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Spring preload
.
Injury hazard!
Injury hazard!
- The use of the specified special tool (tool) is mandatory.
- Carry out the described steps properly.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Note the installation position of the valve spring.
NOTE:
Install the valve spring so that the larger diameter (Y) points to the bottom spring plate.
- Make sure that the intake valves are not switched with the exhaust valves.
NOTE:

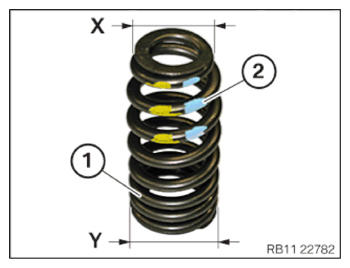

Valve springs (1) are marked in color (2). Color for the intake valves: Yellow/Light blue
- Note the installation position of the valve spring.
NOTE:
Install the valve spring so that the larger diameter (Y) points to the bottom spring plate.
- Make sure that the intake valves are not switched with the exhaust valves.
NOTE:

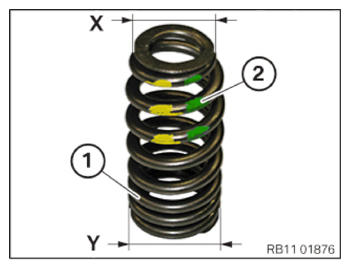

Valve springs (1) are marked in color (2). Color for the exhaust valves:
green/yellow

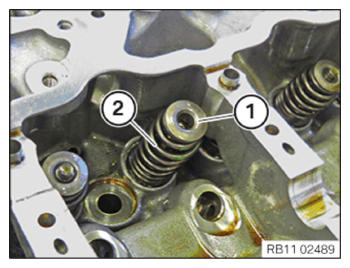

- Install valve spring (2) and the spring plate (1).
NOTE:
TECHNICAL INFORMATION
Wear safety goggles.
Wear safety goggles.

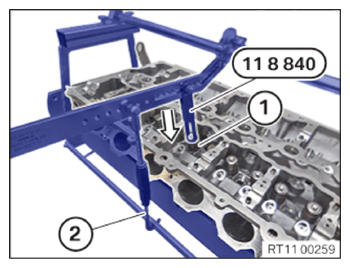

- Press down the valve spring (1) on the spring plate at top in arrow direction with the special tool 0 496 143 (11 8 840) .

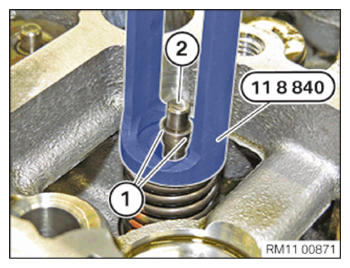

- Use hook (2) to keep valve spring (1) pressed down
.
- Position the valve shims (1) on the valve (2).
- Press down the valve spring (1) on the spring plate at top in arrow direction with the special tool 0 496 143 (11 8 840) .
- Feed out the hook (2) and set it aside.
- Relieve valve spring (1) carefully
.

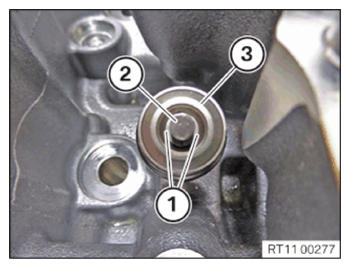

- Make sure the valve shims (1) are correctly positioned on the valve (2) and the valve spring (3).
