Installing the hydraulic unit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.

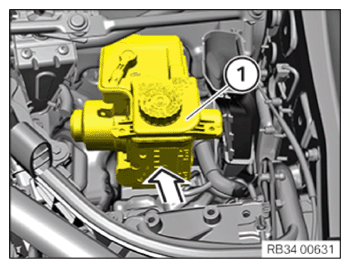

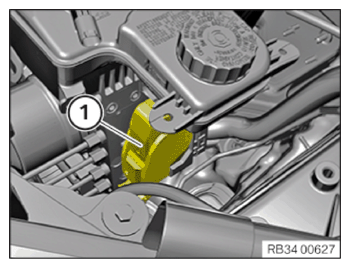

- Position hydraulic unit (1).
- Replace nuts.
Parts: Nuts

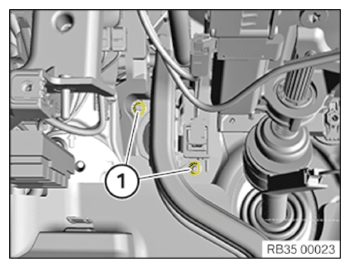

- Install the nuts (1) and tighten.
TIGHTENING TORQUE SPECIFICATIONS
| Hydraulic unit to pedal bracket | ||
| Replace nuts. M8 1x retightening at hydraulic unit after 10 min. |
tightening torque | 22 Nm |

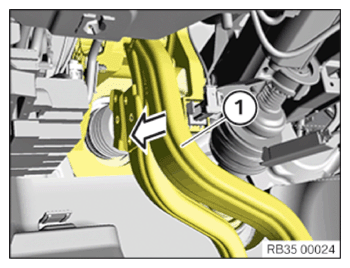

- Lock brake pedal (1) in place in the arrow direction with the brake booster.
- Ensure that the brake pedal is completely locked with the brake booster!
NOTE:
TECHNICAL INFORMATION
Do not interchange brake lines. Mark the brake lines before disassembly (for example, VL/VR/HR/HL) .
Do not bend brake lines.
Close off connecting bores with seal plugs.
Do not interchange brake lines. Mark the brake lines before disassembly (for example, VL/VR/HR/HL) .
Do not bend brake lines.
Close off connecting bores with seal plugs.

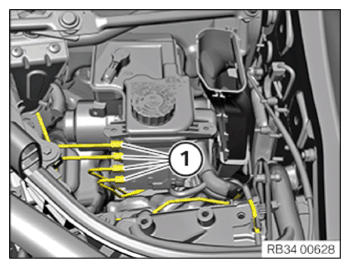

- Fit brake lines (1) and tighten.
TIGHTENING TORQUE SPECIFICATIONS
| Brake pipe screw connection/Union screws | |
| tightening torque | 17 Nm |

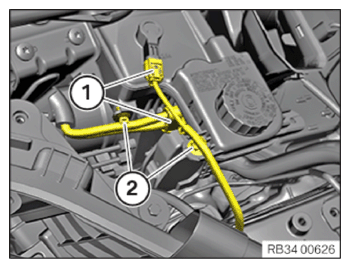

- Connect connector (1).
- Connect connector (1).
- Install the cable clip (2).
Follow-up work
- Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to FLUSHING THE REAR BRAKE AND AIR BLEED (AFTER PART EXCHANGE) .
- Refer to FLUSHING AND BLEEDING FRONT BRAKES (AFTER PART EXCHANGE) .
- Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID (AFTER PART EXCHANGE) .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to FUNCTIONAL CHECK OF INTEGRATED BRAKE SYSTEM .
- Refer to DSC UNIT STARTING-UP/DRIVING DYNAMICS SENSOR ADJUSTMENT/CONTROL UNIT PROGRAMMING .
