Install brake caliper in the rear
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

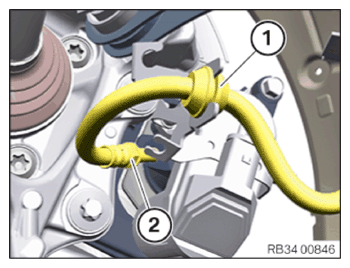

- Fit and tighten brake hose (2) on brake caliper.
TIGHTENING TORQUE SPECIFICATIONS
| Brake hose to brake caliper rear | |
| tightening torque | 24 Nm |
- Hook the brake hose into the holder (1).
NOTE:
RISK OF DAMAGE
Incorrect routing of the brake hose .
If the brake hose is twisted or in contact with surrounding components, it can be damaged and cause the brake system to fail .
Incorrect routing of the brake hose .
If the brake hose is twisted or in contact with surrounding components, it can be damaged and cause the brake system to fail .
- Do not install the brake hose in a twisted position.

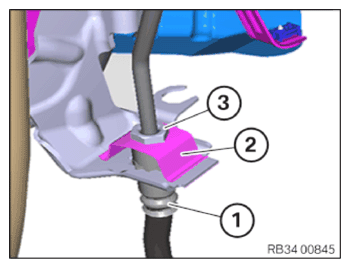

- Insert the brake hose (1) into the body side holder.
- Make sure the retaining spring (2) fits correctly!
- Attach and tighten the union screw (3).
TIGHTENING TORQUE SPECIFICATIONS
| Brake pipe screw connection/Union screws | |
| tightening torque | 17 Nm |
Follow-up work
- Refer to GREASING BRAKE PADS, BRAKE ANCHOR PLATE AND BRAKE CALIPER WITH BRAKE PAD PASTE .
- Refer to INSTALLING REAR BRAKE PADS .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to INSTALLING THE REAR BRAKE PAD WEAR SENSOR .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to FLUSHING THE REAR BRAKE AND AIR BLEED (AFTER PART EXCHANGE) .
- Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID (AFTER PART EXCHANGE) .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to STARTING-UP OR BEDDING IN BREAK-IN OF NEW BRAKE PADS AND BLADES (REAR BRAKE) .
